Fully automatic PU 2 color shoe machine
Overview
Essential details
Place of Origin:Zhejiang, China
Brand Name:ZZ
Model Number:ZZ-863
After-sales Service Provided:Engineers available to service machinery overseas
Operation:simple
Price:factory price(EXW price)
Advantage:high quality and reliability
Feature:convenient maintencance
Electire control:chnt china
Switch:france schnnider
PLC:siemens
Touch screen:siemens
Motor:Japan
Name:PU shoe making machine
Supply Ability:30 Set/Sets per Month

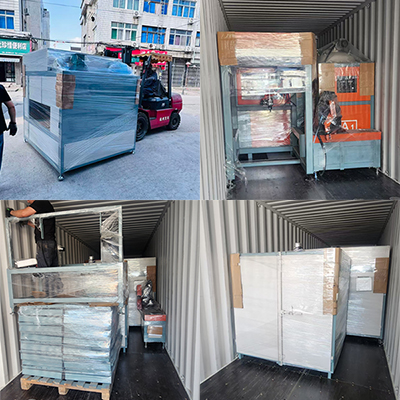

Packaging ：wooden case for shoe-making(sole) pouring machine
Product Overview
AUTO MACHINE for making PU shoe,PU sole
This machine can make many different kinds of soles, PLC can real-time feedback machine working status, easy to operate, easy to get started. Materials are mixed 24 hours at high speed to ensure high quality production.
Features
Well configured system and ease maintenance.
Used for making safety shoe, leisure shoe, casual shoe, sandal, etc in double density.
Suitable for direct soling injection of single PU or colorful PU.
Each injection unit is equipped with two colors with accurate measurement of painting.
Automatic cleaning
Low noise and low energy consumption
Stable rotation and accurate positioning.
High mold clamping force
Independent PLC control for each station with multi-function
any colors can be made.
Machine advantages
uesd for shoes
Simple operation
Bulk supply
Factory price
Soon delivery
Customer design can be done
High quality and reliability
Automated production
Convenient maintenance
Parts imported
Electric control:Chnt china
Switch: France:Schnnider
Plc: Siemens
Touch screen: Siemens
Motor: Japan
Machine Configuration
Each set machine have:
1.Automatic 2 color PU pouring shoe machine
Two color machine
power：15.5KW
size：1980*1300*2280mm
weight：1000KG servo motor.
Schnider electric parts. plc control. With Automatic loading material pump
main machine device: 3 tank(250L) 2 color
pump speed: 0-280
mix head speed: 6000-10800
servo motor power：2.3KW

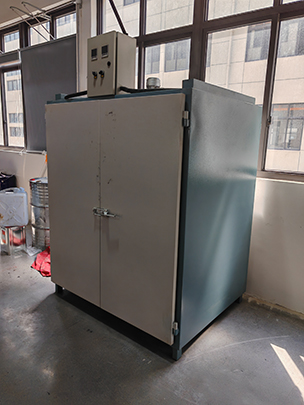

2.Raw material oven
Weight: 300kgs
Power: 9 kw

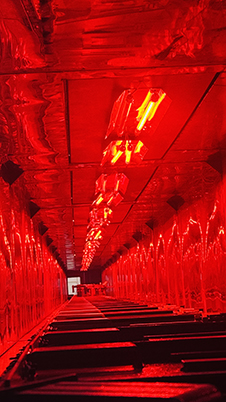

3.Prodcution line 19M and 60 stations
(Number of stations can be customized)
SIZE：19000*2050*1500mm
WEIGHT：7000KGS POWER：4KW+(32KW）
OUTPUT：75-300 pairs/hour
4.Automatic spray mold release agent device
Rated voltage :380V / 50HZ
Power: 5 KW
Size: 1800*1600*1850mm
Weight：300KG
5.Automatic open/close mould device 1 times
(The quantity will be adjusted according to the actual requirements of the order.)
Rated voltage :380V / 50HZ
Power: 2 KW
Size: 1100*420*900mm
Weight：200KG
6.Mould release agent tank(inside the pouring machine)
7.Mc tank(inside the pouring machine)
8.cooling machine
Rated voltage :380V
Power: 2.27 KW
Size: 650*600*1022mm
Weight：99KG
9.air pump
Rated voltage :380V
Power: 7.5 KW
Size: 1100*300*800mm
Weight：130KG

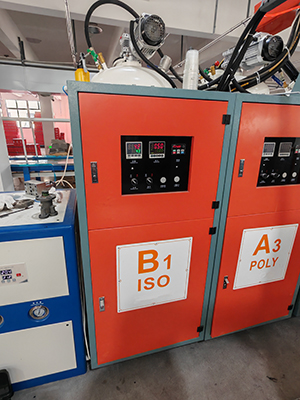

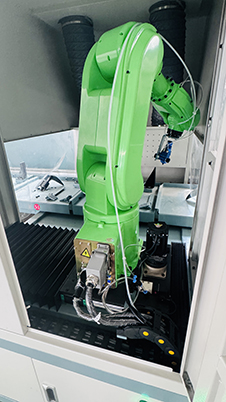

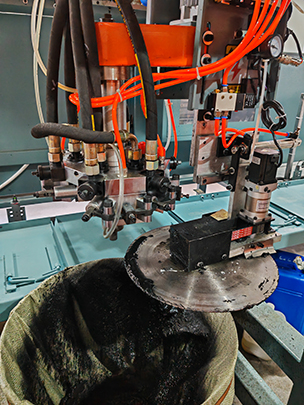

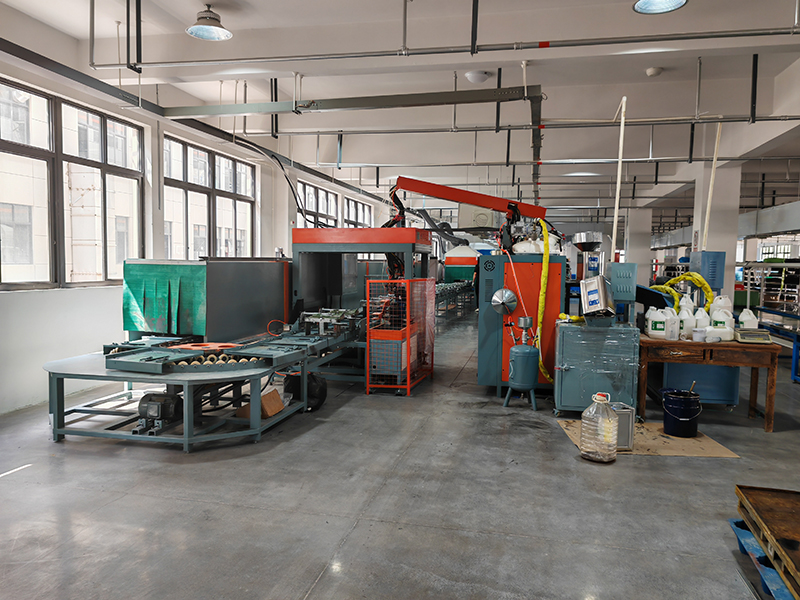

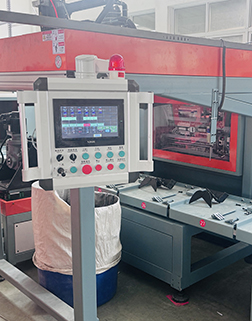

Machine detail photo

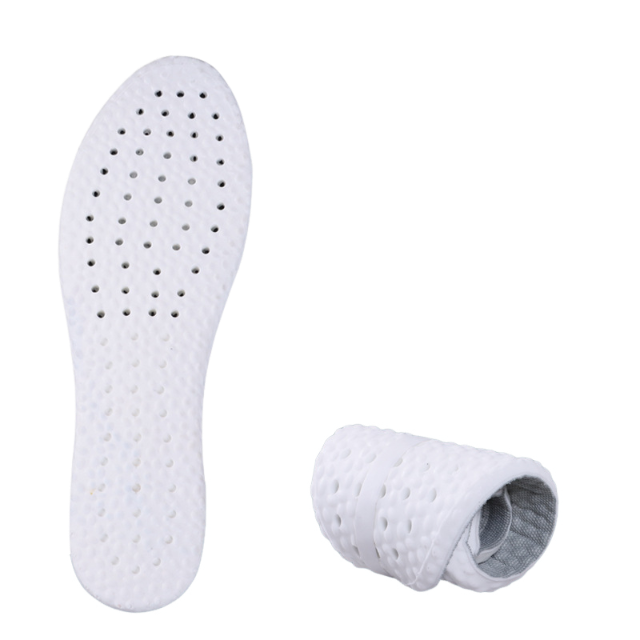

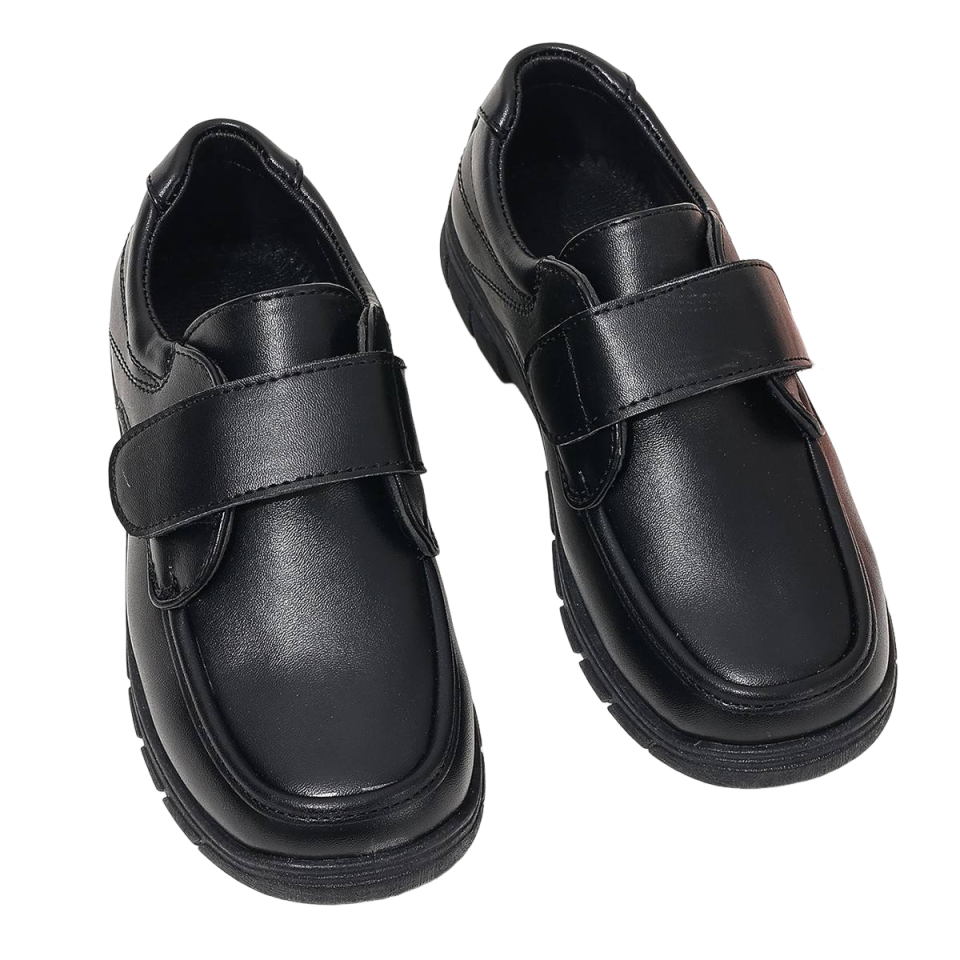

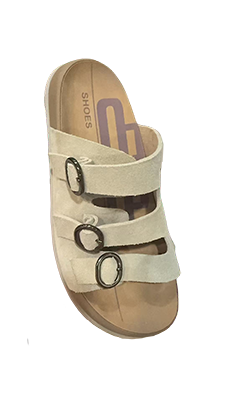

The shoe produced by our machine
Not only these styles, but most of the PU shoes can be produced by our machines. It's just that the shoe molds are different. You can send us photos of your shoes to confirm.
FAQ
Q1：How do I make sure your machine can make the shoes I want?
A1：As long as the shoes you want to make are made of PU material, you can send your shoe sample pictures to us, and we will recommend a suitable shoe machine for you according to the shoe sample.
A2:Our company is located if Ruina City,Zhejiang,China.A city famous for making shoes.
Welcome to visit our company, it just needs 4hours from Shanghai.
A3:Yes,according to your requirements.
A4:Steel,cast iron and so on.We can also choose the materials as customers'needs.
A5:It depends on your order quantity,if just few sets,it needs 40-50 days.
A6:As usual, 30 deposit and balance T/T before shipment or L/C
A7:Yes,we have shoe mold facotry.Beside providing customers with existing sampless,we also accepts customizing orders.
